<!DOCTYPE html>
<html lang="en">
<head>
	<meta charset="UTF-8">
	<meta http-equiv="X-UA-Compatible" content="IE=edge">
	<meta name="viewport" content="width=device-width, initial-scale=1.0">
	<title>authentication</title>
</head>
<script src="https://code.jquery.com/jquery-3.6.2.js" integrity="sha256-pkn2CUZmheSeyssYw3vMp1+xyub4m+e+QK4sQskvuo4=" crossorigin="anonymous"></script>

<link rel="stylesheet" href="./resource/css/pattern_lock.css">
<script src="./resource/js/pattern_lock.js" charset="utf-8"></script>
<body>


	<!-- 패턴-->
	<svg class="patternlock" id="lock" viewBox="0 0 100 100">
		<g class="lock-actives"></g>
		<g class="lock-lines"></g>
		<g class="lock-dots">
			<circle cx="20" cy="20" r="2"/>
			<circle cx="50" cy="20" r="2"/>
			<circle cx="80" cy="20" r="2"/>

			<circle cx="20" cy="50" r="2"/>
			<circle cx="50" cy="50" r="2"/>
			<circle cx="80" cy="50" r="2"/>

			<circle cx="20" cy="80" r="2"/>
			<circle cx="50" cy="80" r="2"/>
			<circle cx="80" cy="80" r="2"/>
		</g>
    </svg>

	<button onClick="clearPattern()"> Clear </button>

</body>


<script>

	/** 패턴 핸들러 **/
	let lock = new PatternLock("#lock", {
		onPattern: (pattern) => {
			console.log(pattern); // 입력한 패턴 값

			if(pattern === 123){
				lock.success();
			}else{
				lock.error();
			}

		},
		vibrate: false // 진동 on / off
	});

	let clearPattern = () =>{
		lock.clear();
	}

	let getPattern = () =>{
		lock.getPattern();
	}


</script>

</html>

index.html

(function (factory) {
  var global = Function('return this')() || (0, eval)('this');
  if (typeof define === 'function' && define.amd) {
      // AMD. Register as an anonymous module.
      define(['jquery'], function($) {
          return factory($, global)
      });
  } else if (typeof exports === 'object') {
      // Node. Does not work with strict CommonJS, but
      // only CommonJS-like environments that support module.exports,
      // like Node.
      module.exports = factory(require('jquery'), global);
  } else {
      // Browser globals (global is window)
      global.PatternLock = factory(global.jQuery, global);
  }
}(function ($, window) {
  var svgns = 'http://www.w3.org/2000/svg'
  var moveEvent = 'touchmove mousemove'

  var scrollKeys = {
      37: true, // left
      38: true, // up
      39: true, // right
      40: true, // down
      32: true, // spacebar
      38: true, // pageup
      34: true, // pagedown
      35: true, // end
      36: true, // home
  };

  function vibrate() {
      navigator.vibrate = navigator.vibrate || navigator.webkitVibrate || navigator.mozVibrate || navigator.msVibrate;
      if (navigator.vibrate) {
          window.navigator.vibrate(25)
      }
  }

  function PatternLock(element, options) {
      let svg = $(element)
      let self = this
      let root = svg[0]
      let dots = svg.find('.lock-dots circle')
      let lines = svg.find('.lock-lines')
      let actives = svg.find('.lock-actives')
      var pt = root.createSVGPoint();
      let code = []
      let currentline
      let currenthandler

      options = Object.assign(PatternLock.defaults, options || {})

      svg.on('touchstart mousedown', (e) => {
          clear()
          e.preventDefault()
          disableScroll()
          svg.on(moveEvent, discoverDot)
          let endEvent = e.type == 'touchstart' ? 'touchend' : 'mouseup';
          $(document).one(endEvent, (e) => {
              end()
          })
      })

      // Exported methods
      Object.assign(this, {
          clear,
          success,
          error,
          getPattern,
      })

      function success() {
          svg.removeClass('error')
          svg.addClass('success')
      }

      function error() {
          svg.removeClass('success')
          svg.addClass('error')
      }

      function getPattern() {
          return parseInt(code.map((i) => dots.index(i)+1).join(''))
      }

      function end() {
          enableScroll()
          stopTrack(currentline)
          currentline && currentline.remove()
          svg.off(moveEvent, discoverDot)
          let val = options.onPattern.call(self, getPattern())
          if (val === true) {
              success()
          } else if (val === false) {
              error()
          }
      }

      function clear() {
          code = []
          currentline = undefined
          currenthandler = undefined
          svg.removeClass('success error')
          lines.empty()
          actives.empty()
      }

      function preventDefault(e) {
          e = e || window.event;
          if (e.preventDefault)
              e.preventDefault();
          e.returnValue = false;
      }

      function preventDefaultForScrollKeys(e) {
          if (scrollKeys[e.keyCode]) {
              preventDefault(e);
              return false;
          }
      }

      function disableScroll() {
          if (window.addEventListener) // older FF
              window.addEventListener('DOMMouseScroll', preventDefault, false);
          window.onwheel = preventDefault; // modern standard
          window.onmousewheel = document.onmousewheel = preventDefault; // older browsers, IE
          window.ontouchmove = preventDefault; // mobile
          document.onkeydown = preventDefaultForScrollKeys;
      }

      function enableScroll() {
          if (window.removeEventListener)
              window.removeEventListener('DOMMouseScroll', preventDefault, false);
          window.onmousewheel = document.onmousewheel = null;
          window.onwheel = null;
          window.ontouchmove = null;
          document.onkeydown = null;
      }

      function isUsed(target) {
          for (let i = 0; i < code.length; i++) {
              if (code[i] === target) {
                  return true
              }
          }
          return false
      }

      function isAvailable(target) {
          for (let i = 0; i < dots.length; i++) {
              if (dots[i] === target) {
                  return true
              }
          }
          return false
      }

      function updateLine(line) {
          return function(e) {
              e.preventDefault()
              if (currentline !== line) return
              let pos = svgPosition(e.target, e)
              line.setAttribute('x2', pos.x)
              line.setAttribute('y2', pos.y)
              return false
          }
      }

      function discoverDot(e, target) {
          if (!target) {
              let {x, y} = getMousePos(e)
              target = document.elementFromPoint(x, y);
          }
          let cx = target.getAttribute('cx')
          let cy = target.getAttribute('cy')
          if (isAvailable(target) && !isUsed(target)) {
              stopTrack(currentline, target)
              currentline = beginTrack(target)
          }
      }

      function stopTrack(line, target) {
          if (line === undefined) return
          if (currenthandler) {
              svg.off('touchmove mousemove', currenthandler)
          }
          if (target === undefined) return
          let x = target.getAttribute('cx')
          let y = target.getAttribute('cy')
          line.setAttribute('x2', x)
          line.setAttribute('y2', y)
      }

      function beginTrack(target) {
          code.push(target)
          let x = target.getAttribute('cx')
          let y = target.getAttribute('cy')
          var line = createNewLine(x, y)
          var marker = createNewMarker(x, y)
          actives.append(marker)
          currenthandler = updateLine(line)
          svg.on('touchmove mousemove', currenthandler)
          lines.append(line);
          if(options.vibrate) vibrate()
          return line
      }

      function createNewMarker(x, y) {
          var marker = document.createElementNS(svgns, "circle")
          marker.setAttribute('cx', x)
          marker.setAttribute('cy', y)
          marker.setAttribute('r', 6)
          return marker
      }

      function createNewLine(x1, y1, x2, y2) {
          var line = document.createElementNS(svgns, "line")
          line.setAttribute('x1', x1)
          line.setAttribute('y1', y1)
          if (x2 === undefined || y2 == undefined) {
              line.setAttribute('x2', x1)
              line.setAttribute('y2', y1)
          } else {
              line.setAttribute('x2', x2)
              line.setAttribute('y2', y2)
          }
          return line
      }

      function getMousePos(e) {
          return {
              x: e.clientX || e.originalEvent.touches[0].clientX,
              y :e.clientY || e.originalEvent.touches[0].clientY
          }
      }

      function svgPosition(element, e) {
          let {x, y} = getMousePos(e)
          pt.x = x; pt.y = y;
          return pt.matrixTransform(element.getScreenCTM().inverse());
      }
  }


  PatternLock.defaults = {
      onPattern: () => {},
      vibrate: true,
  }


  return PatternLock
}));

pattern_lock.js



svg.patternlock g.lock-lines line {
    stroke-width: 1.5;
    stroke: black;
    opacity: 0.5;
}

svg.patternlock g.lock-dots circle {
    stroke: transparent;
    fill: black;
    stroke-width: 13.5;
}

svg.patternlock g.lock-actives circle {
    fill: black;
    opacity: .2;
    animation: lock-activate-dot .15s 0s ease 1;
    transform-origin: center;
}

svg.patternlock g.lock-lines line {
    stroke-width: 1.5;
    stroke-linecap: round;
}

svg.patternlock.success g.lock-actives circle {
    fill: green;
}

svg.patternlock.error g.lock-actives circle {
    fill: red;
}

@keyframes lock-activate-dot {
    0% {
        transform: scale(0);
    }
    75% {
        transform: scale(1.1);
    }
    100% {
        transform: scale(1.0);
    }
}

pattern_lock.css

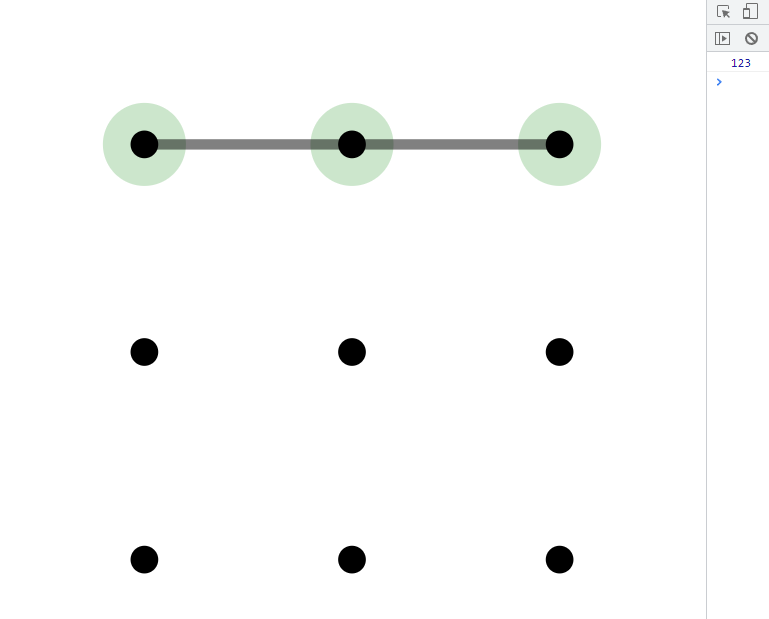

성공

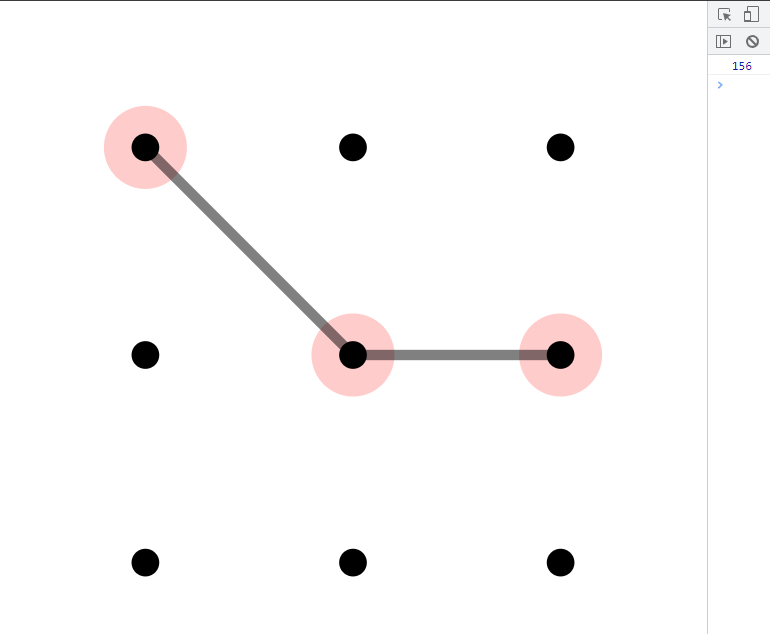

실패

출처 : https://github.com/tympanix/pattern-lock-js



GitHub - tympanix/pattern-lock-js: An android inspired pattern lock in scalable vector graphics and pure javascript

An android inspired pattern lock in scalable vector graphics and pure javascript - GitHub - tympanix/pattern-lock-js: An android inspired pattern lock in scalable vector graphics and pure javascript

github.com



자세한 문서는 위에 깃허브 참조하시면 됩니다.
